JD MACDONALD

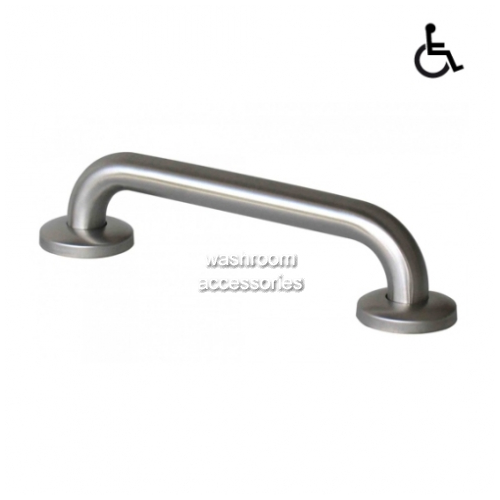

JD MACDONALD JDM-GSN STRAIGHT GRAB RAIL

Satin Stainless Steel

Associated Categories

Product Information

Item Number:

JDM-GSN-3 : 300mm L x 32mm Dia
JDM-GSN-4 : 400mm L x 32mm Dia
JDM-GSN-4S : 450mm L x 32mm Dia
JDM-GSN-5 : 500mm L x 32mm Dia
JDM-GSN-6 : 600mm L x 32mm Dia
JDM-GSN-7 : 700mm L x 32mm Dia
JDM-GSN-7S : 750mm L x 32mm Dia
JDM-GSN-8 : 800mm L x 32mm Dia
JDM-GSN-9 : 900mm L x 32mm Dia
JDM-GSN-10 : 1000mm L x 32mm Dia
JDM-GSN-12 : 1200mm L x 32mm Dia
JDM-GSN-15 : 1500mm L x 32mm Dia
JDM-GSN-20 : 2000mm L x 32mm Dia


Features:

* Satin Stainless Steel
* Fabricated of grade 304 stainless steel
* Concealed flanges


SPECIFICATION
Designed for the safety, security and convenience of the physically disabled. Easy to install on most building surfaces. Grab Rails shall be type 304 stainless steel alloy 18-8. Tubing shall be 32mm diameter x 18 gauge (1.2mm). Flange shall be 3mm thick and shall be Heliarc welded to tubing with a continuous concealed bead and shall have three (3) 7mm diameter mounting holes. Cover plates to conceal flange and fixings shall be 22 gauge (0.8mm) stainless steel.


RECOMMENDED INSTALLATION
To comply with Australian Standards AS 1428.1, grab rails must be fastened a minimum distance of 800mm from the floor, with 600mm of clear space above the rail and to withstand a force of 1100N at any point from any direction.


WARRANTY
Grab Rail products distributed by ASI JD MacDonald are guaranteed to be free from defective materials and workmanship for 12 months from the date of purchase, subject to the product being installed and maintained in accordance with the Installation and Operating instructions (fixings supplied by others)




Code Size Dimensions Weight Colours
JDM-GSN-3 300mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-5 500mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-7 700mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-4 400mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-45 450mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-8 800mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-6 600mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-9 900mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-10 1000mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-75 750mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-12 1200mm 2.00 (kgs) Satin Stainless Steel
JDM-GSN-15 1500mm 2.00 (kgs) Satin Stainless Steel

Product Size, Colour and Price Options

Size Available Colours Our Price $
300mm Satin Stainless Steel
$49.02
500mm Satin Stainless Steel
$52.19
700mm Satin Stainless Steel
$55.85
400mm Satin Stainless Steel
$56.80
450mm Satin Stainless Steel
$57.19
800mm Satin Stainless Steel
$58.50
600mm Satin Stainless Steel
$61.28
900mm Satin Stainless Steel
$62.14
1000mm Satin Stainless Steel
$65.06
750mm Satin Stainless Steel
$67.40
1200mm Satin Stainless Steel
$71.80
1500mm Satin Stainless Steel
$105.35

Quantity


Select Size


Select Colour




Add Item to Cart
