Product Code: LVQD2-WB1-MYK
Please note: This item will incur an additional freight charge
Key Features:
Touchless technology

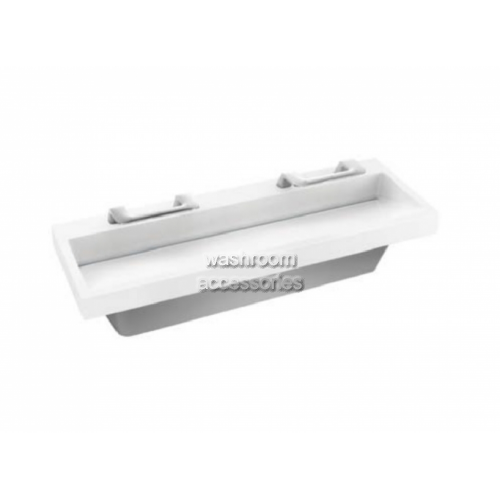

One piece chrome plated WashBar includes touch free soap water hand dryer and basin
Surface mounted
WashBar blue LED lights guide users and eliminates simultaneous activation
Basin and drain engineered to evacuate water and dissipate air flow
Single piece moulded basin eliminates caulk lines and seams
WashBar and Basin system comes complete
The unit handles washroom traffic quickly and economically
The single piece all-in-one WashBar allows users to access soap water and a hand dryer without leaving the hand washing station
PRODUCT DATA
Specifications:
Water consumption savings 1.3 LPM
Soap Dispenser capacity: 3.78 litres
Hand Dryer has Inline Filter

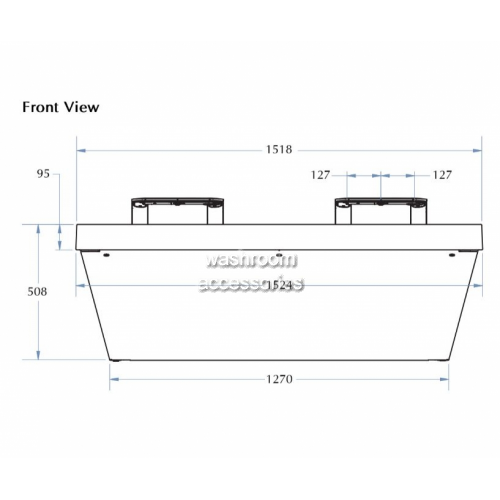

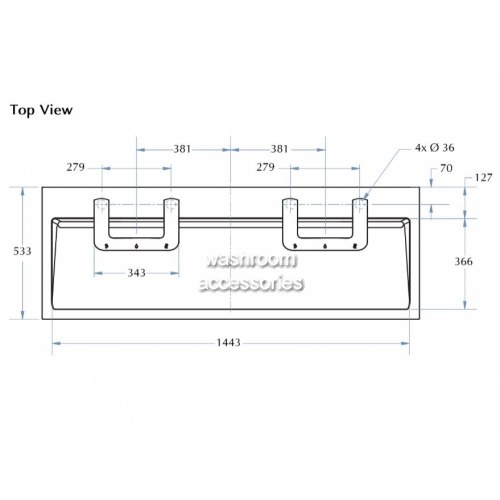

Wash Basin is 1524mm in length
Designed to accommodate two users at a time
Weight: 132kg
Basin colour: Mykonos White
WashBar finish: Polished Chrome
Please note: this plumbing fixture is designed for hand washing only. It is not intended to dispense water for human consumption through drinking or for preparation of food or beverages
Basin:
Designed to direct water to a drench drain
Features a 300 series stainless steel drain cap
Basin and drain tap work together to evacuate water and dissipate airflow to prevent splashing on the user or the floor
Constructed of Evero Geo Series a natural quartz surface made from a blend of bio-based resin natural quartz granite and other minerals
Made of 25% recycled content
Please note: Variations in the natural stone colour pattern size shape and shade are inherent. Due to these unique characteristics please expect subtle shade variations when units are installed adjacent to each other
Wash Bar:
All-in-one chrome plated cast metal - polished chrome finish
Includes touch-free soap water and hand dryer
Load tested to 227kgs
WashBar is secured to the basin with two anti-rotational shanks
Blue LED lights help to guide users and indicate three functions
LED light will change from blue to green to signify the the function is in use
Each function is easily identified by the corresponding icon on the WashBar's top surface
Sensors are programmed to eliminate simultaneous activation of nearby functions
Each sensor includes a turn-off delay of 1-2 seconds to aid in a smooth controlled hand washing and drying operation
Smart technology allows the facilities manager or maintenance staff to clean and configure with ease
Cleaning mode: WashBar has an activation feature to put the unit into cleaning mode to allow for easy cleaning without activating the functions
Configurations mode: to identify how many cycles are on the soap sensor tap and dryer. This mode also allows for dryer speed adjustment at low medium and high levels
Soap Dispensers:
The soap dispenser is located on the left side of the WashBar
Foam soap dispenser - compatible with most bulk soaps
For optimum operation and performance the recommended soap is the Bradley AQF6011 Aqua Foam Soap
Soap system accommodates up to a 3.78 Litre container to reduce the number of soap replacements.
When the LED light above the soap function turns to solid red simply check the level and replace the soap container with a full container if necessary.
The soap system includes an adapter to fit many 3.78 litre soap containers available on the market.
Sensor Tap:

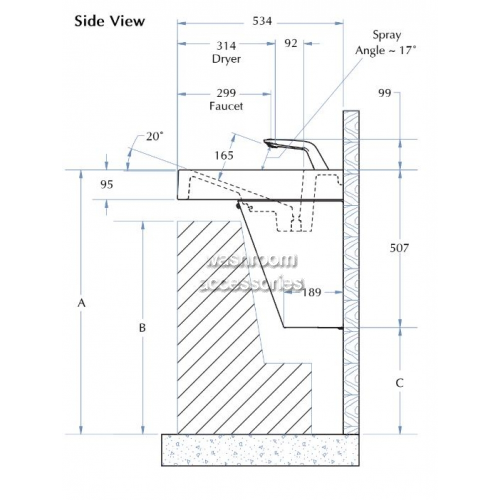

Located in the centre of the WashBar and has a spray angle of approximately 17 degrees off the vertical
1.3 Lpm PCA silicone tip non-aerated spray pattern
Maximum run time is 11 seconds
Automatic 5 second purge within 24 hours of the last use
Recommended operating range is 137.89 - 551.58 kpa
Hand Dryer:
Located on the right side of the WashBar allowing users to dry their hand immediately after washing - eliminates excess water on the floor
Dryer motor provides heated air at three speeds (high medium or low) which can be field adjusted by placing the WashBar in configuration mode
Drys hands in approximately 15 seconds
Decibel range with hands in air system is 76 dB (high speed) to 64 dB (low speed)
Electrical
Total rated power of each WashBar station is 1200W
WashBar requires a 3 outlet standard power point 2.4 kw (10 amp) to be installed on the right hand side next to the dryer no more than 1.4 metres from the installation of the dryer assembly
Access Panel
Minimalistic panel is composed of 300 series stainless steel
Plumbing components dryer motor and soap tank are concealed within the panel
Swing down access panel is designed to ease the maintenance process by eliminating tools and only requires one person for installation
Cam lock
Top edge of the access panel has been hemmed to reduce sharpness
Support Bracket
Bracket design allows for flexible stud or wall blocking anchor locations
System is IAPMO certified to meet or exceed ANSI load requirements
Requires sufficient in wall support to hold load
Strainer and Drain Assembly System
Strainer and drain assembly system comes complete with 300 series stainless steel trench drain cap tailpiece and polypropylene P-trap
Multi-station system is configured with one drain and one set of supplies to reduce the cost associated with individual drains and supplies
