Bobrick is a global washroom accessory company that has been around for more than 100 years. They are a leader in product innovation and manufacturing which is why customers from all around the world rely on their products.


Item Number:

B8221: 600mL bottle - 100mm spout
B82216: 600mL bottle -150mm spout

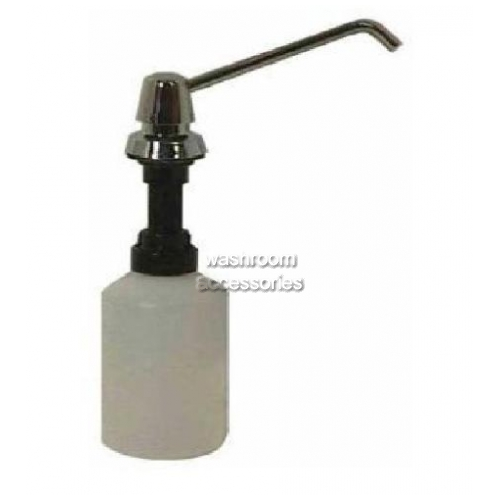

Bobrick Basin Mounted Soap Dispenser key features:

This corrosion-resistant soap dispenser includes a vandal-resistant locking cover and free-turning spout
The Basin Mounted Soap Dispenser has a bright polished finish, with a capacity of 600mL and a 150mm spout
Body and shank are high-impact-resistant ABS plastic with a shatter-resistant polyethylene container


Materials used on the Bobrick Basin Mounted Soap Dispenser:

Piston, Spout, and Top Cover - Type-304 stainless steel with a bright polished finish.
Cover Spacer - Rigid, impact-resistant polyester.
Escutcheon - Chrome-plated, high-impact-resistant ABS with a bright polished finish and a concealed locking mechanism.
Body and Shank - High-impact-resistant plastic.
Valve - ABS cylinder. Stainless steel spring. U-packing seal and duckbills.
Container - Translucent, shatter-resistant polyethylene. Capacity: 20-fl oz (0.6-L).


How to operate the Basin Mounted Soap Dispenser:

Press piston down to dispense commercially marketed all purpose hand soaps. The vandal-resistant spout can rotate 360deg without damage to the unit. Escutcheon locks to the body with a concealed locking mechanism that is opened with special key provided.
To fill from the top, unlock cover and remove the piston, spout, and supply-tube assembly. The unit may also be filled by removing the container from below lavatory.

Designer's Note: Bobrick liquid soap dispensers are designed to dispense commercially marketed all purpose hand soaps including liquid and lotion soaps, synthetic detergents, and antibacterial soaps containing PCMX and/or Triclosan.


How to install the Bobrick Basin Mounted Soap Dispenser:

Unit is designed for installation in 1 (25mm) diameter hole in porcelain-enameled steel, cast-iron or vitreous-china lavatories, as well as in countertops adjacent to lavatories.
Unit may be mounted in unused faucet hole or through special hole requisitioned when the lavatory is ordered from the manufacturer (specify punching location).
Shank accommodates maximum 1 (25mm) mounting thickness and can be cut in the field.
Clearance required for container diameter is 3-5/16 (85mm).


Specifications:

Lavatory-mounted soap dispenser shall dispense commercially marketed all-purpose hand soaps.
Piston and spout assembly shall be type-304 stainless steel with a bright polished finish.
Escutcheon shall lock to the body with a concealed locking mechanism that is opened only with special key provided.
Spout shall rotate 360deg without damage to the valve mechanism.
Piston, spout, and supply-tube assembly shall be removable from the top for filling and maintenance.
Valve shall be equipped with a plastic cylinder, stainless steel spring, U-packing seal, and duckbills.
Shank shall accommodate mounting thicknesses up to 1 (25mm).
Translucent, shatter-resistant polyethylene container shall have a capacity of 20-fl oz (0.6-L)



Code	Size	Dimensions	Weight	Colours
B8221	100mm Spout		1.00 (kgs)	Bright polished spout
B82216	150mm Spout		1.00 (kgs)	Bright polished spout
