Item Number : B4063

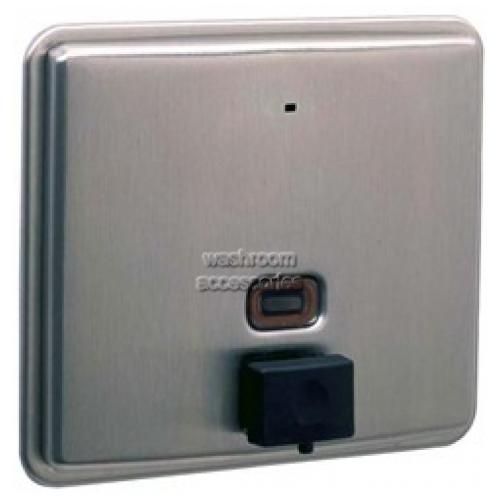

Key Features of the Bobrick B4063 Soap Dispenser Recessed

Satin finish Stainless Steel
180mm W x 160mm H x 45mm D
Recessed
Capacity: 1.2L
Antibacterial-soap resistant

MATERIALS

Cabinet

18-8 S, type-304, heavy-gauge stainless steel. All-welded construction. Equipped with a concealed locking device to secure door; keyed like other Bobrick washroom accessories.

Flange 18-8 S, type-304, heavy-gauge stainless steel with satin finish. Drawn, one-piece, seamless construction. Radius on corners and return edges complement corners and edges of door.

Door

18-8 S, type-304, 20-gauge (1.0mm) stainless steel with satin finish. Drawn, one-piece, seamless construction. Front of door has same degree of arc as other Bobrick Contura Series washroom accessories. Radius on corners and edges of door complement other
Contura Series accessories. Secured to cabinet with a full-length stainless steel piano-hinge. Equipped with an unbreakable plastic refillindicator window. Two stainless steel angle brackets are spot-welded to back of door for securing plastic container.

Soap Container

Molded plastic. Large opening equipped with plastic cover.

Capacity 1.5 Litre.

Valve

Black molded plastic push button and spout. Soap head-holding mushroom valve. Stainless steel spring. U-packing seal and duckbills. Antibacterial-soap-resistant plastic cylinder.

OPERATION

Push-in valve dispenses measured amount of antibacterial soaps (active ingredient PCMX or Triclosan), iodine-based surgical soaps, or alcohol-based antiseptic solutions, as well as liquid and lotion soaps, and synthetic detergents. Valve operates with one hand, without tight grasping, pinching, or twisting of the wrist, and with less than 5 pounds of force (22.2 N) to comply with barrier-free accessibility guidelines (including ADAAG in U.S.A.). Window indicates when refill is required. Door unlocks with key provided and swings open for filling container. Large opening in container provides fast, easy filling.

INSTALLATION

Provide framed rough wall opening 5-7/8 wide x 5-1/2 high (150 x 140mm). Minimum recessed depth required from finish face of wall is 4 (102mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits. Mount unit in rough wall opening with shims between framing and cabinet at all points indicated by an S, then secure unit with #8 x 1-1/4 (M4.2 x 32mm) sheet-metal screws (not furnished).

Note Place unit as close to top of deck of lavatory as plumbing vent code will permit and with bottom of door high enough to clear fixture trim.

SPECIFICATION

Recessed soap dispenser shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Corrosionresistant valve shall dispense antibacterial soaps (active ingredient PCMX or Triclosan), iodine-based surgical soaps, or alcohol-based antiseptic solutions, as well as liquid and lotion soaps, and synthetic detergents. Valve shall be operable with one hand and with less than 5 pounds of force (22.2 N) to comply with barrier-free accessibility guidelines (including ADAAG in U.S.A.). Front of soap dispenser door shall have same degree of arc and match other Bobrick Contura Series accessories in the washroom. Radius on corners and edges of
flange and door shall complement other Bobrick Contura Series washroom accessories. Flange shall be drawn, one-piece, seamless construction. Soap dispenser door shall be drawn, 20-gauge (1.0mm), one-piece, seamless construction; secured to cabinet with a fulllength stainless steel piano-hinge; and equipped with an unbreakable refill-indicator window. Door shall be secured to cabinet with a concealed locking device keyed like other Bobrick washroom accessories; and shall swing out for filling. Soap container shall have a capacity of 1.5 Litre



Code	Size	Dimensions	Weight	Colours
B4063	1.2L	180mm W x 160mm H x 45mm D	2.00 (kgs)	Satin stainless steel
