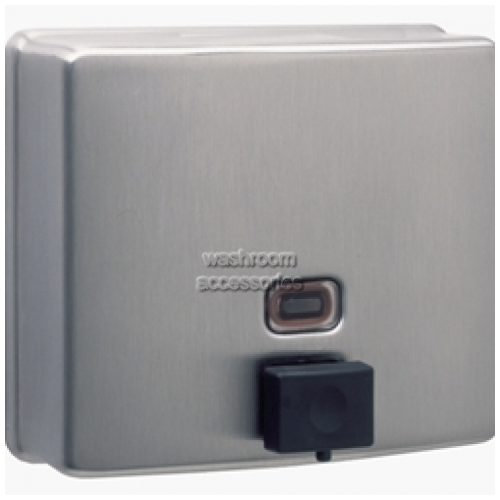

Item Number:

B4112 : Satin Stainless Steel
B4112-316 : Marine Grade #316
B4112-HP : Bright Polished


Satin finish Stainless Steel
Overall Dimension : 180mm W x 155mm H x 85mm D
Capacity 1.2Litre
Antibacterial-soap resistant


MATERIALS

Container

Body is 18-8 S, type-304, 20-gauge (1.0mm) stainless steel with satin finish. Drawn, one-piece, seamless construction. Front has same degree of arc as other Bobrick Contura Series washroom accessories. Radius on corners and edges complement other Contura Series accessories.
Back plate is 22-gauge (0.8mm) stainless steel with 20-gauge (1.0mm) stainless steel mounting bracket attached.
Container body and back plate are epoxy-sealed to prevent warping and leakage.
Concealed wall plate is 20-gauge (1.0mm) stainless steel. Equipped with a plastic soap refill-indicator window and a locked, hinged stainless steel lid for top filling.
Capacity 1.18 Litre.
Valve
Black molded plastic push button. Soap head-holding mushroom valve. Stainless steel spring. U-packing seal and duckbill. Antibacterial-soap-resistant plastic cylinder.

OPERATION

Corrosion-resistant valve dispenses commercially marketed all-purpose hand soaps. Valve operates with one hand, without tight grasping, pinching, or twisting of the wrist, and with less than 5 pounds of force (22.2 N) to comply with barrier-free accessibility guidelines (including ADAAG in U.S.A.). Window indicates when refill is required. The locked, hinged lid opens for top filling with special key provided. Concealed, vandal-resistant mounting.

INSTALLATION

Secure wall plate to the wall with screws furnished at points indicated by an S. Slide mounting bracket of container down onto wall plate and secure unit with furnished locking-screw. For plaster or dr y wall construction, provide concealed backing to comply with local building codes, then secure unit with screws furnished. For other wall surfaces, provide fiber plugs or expansion shields for use with screws furnished, or provide 1/8'' (3mm) toggle bolts or expansion bolts. Note: Surface-mount the dispenser plumb and true with valve 6'' (152mm) to right or left of lavatory center. Provide 4'' (102mm) minimum clearance from the lid to the underside of any horizontal projection. Push buttons should be located 44 (1120mm) maximum above the finish floor.

SPECIFICATION

Surface-mounted soap dispenser shall be type-304 stainless steel with satin finish. Corrosion-resistant valve shall dispense commercially marketed all-purpose hand soaps. Valve shall be operable with one hand and with less than 5 pounds of force (22.2 N) to comply with barrier-free accessibility guidelines (including ADAAG in U.S.A.). Front of soap dispenser shall have same degree of arc and match other Bobrick Contura Series accessories in the washroom. Radius on corners and edges of soap dispenser shall complement other Bobrick Contura Series washroom accessories. Container body and back plate shall be epoxy-sealed to prevent warping and leakage. Soap dispenser shall have concealed, vandal-resistant mounting. Locked, hinged stainless steel lid for top filling shall require special key to open. Capacity shall be 1.18 Litre.



Code	Size	Dimensions	Weight	Colours
B4112 B4112-316 B4112-HP	1.2L	180mm W x 155mm H x 85mm D	1.00 (kgs)	Satin Stainess Steel Marine Grade Stainless Steel Bright Polished Steel
